Features

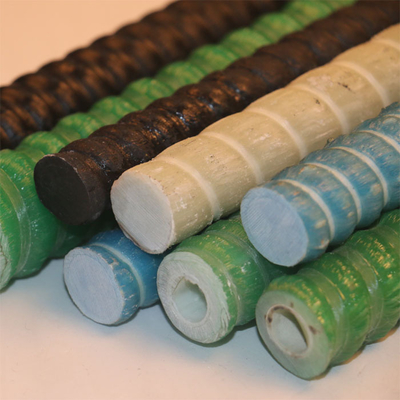

CFRP Reinforcement Rebar is developed as a good alternative product for concrete internal reinforcement. The SupFRP® CFRP Reinforcement Rebar is made of high quality corrosion resistant resin and glass fiber materials. The GFRP Reinforcement Rebar can be produced into various shapes in factory. Glass Rebar is an outstanding product for concrete reinforcement. It weighs 4 times less than steel rebar and its tensile strength is 3 times higher.
Applications
1. Infrastructural Buildings
2. Bridge decks
3. Sea walls
4. Port aprons
5. Precast elements
6. Foundations
7. Industrial Plants
8. Soft-eye excavation
Advantages
1. High corrosion resistance for permanent application
2. Excellent bonding with concrete
3. High tensile strength
4. Non-conductive
5. Non-magnetic
6. Easy cutting-Cost-effective
7. Wide range of shapes
8. Easy handling
Technical Data
GFRP Bolt | D2 | D3 | D4 | D6 |
Outside Diameter (mm) | 2 | 3 | 4 | 6 |
Tensile Load (kN) | 3 | 7.2 | 13 | 30 |
Nominal Cross Sectional Area (mm2) | 3 | 7 | 12 | 28 |
Tensile Strength (MPa) | 1000 | 1000 | 1000 | 1000 |
Ultimate Strain | 2.0% | |||
Tensile E-Modulus (GPa) | 50 | |||
Material Type | Glass Fiber Reinforced Polymer | |||
Weight (kg/m) | 0.007 | 0..015 | 0.027 | 0.06 |
